Products Description
Wear-Resistant High Manganese Steel Crusher Parts mainly include core wear components such as jaw plates, hammer heads, liners and crushing hammers, which are key crusher components that directly strike and compress stone materials. These parts are cast from high manganese steel with grade options of Mn13, Mn13Cr2, Mn18Cr2 and Mn22Cr2, and can be customized to deliver unique work-hardening characteristics. When subjected to impact and compression, their surfaces quickly form a high-hardness wear-resistant layer, while the inner core retains excellent toughness to prevent fracture.Compatible with jaw, cone, hammer and other types of crushing equipment, these parts are widely applied in mining, sand and gravel, and building material production lines. Ordinary steel components are prone to severe wear and premature failure under long-term high-intensity impact and friction from ores. By contrast, high manganese steel components significantly extend service life and reduce downtime for part replacement, making them ideal for crushing hard materials such as granite, basalt and iron ore.
Working Principle
During operation of Wear-Resistant High Manganese Steel Crusher Parts, raw materials enter the crushing chamber and undergo progressive fragmentation via extrusion, impact and grinding contact with the wear components. Upon severe mechanical impact, the austenitic microstructure on the high manganese steel surface rapidly transforms into martensite, generating pronounced work hardening: surface hardness rises proportionally with abrasion to form a high-hardness protective wear layer, while the inner casting substrate retains favorable ductility. This dual property of a hard exterior paired with a tough interior delivers an inherent self-protection mechanism, enabling consistent stable component operation under harsh industrial crushing conditions.
Product Advantages
Extended Abrasion Service Life
Constructed from high manganese steel that triggers a work-hardening response under impact loads; surface hardness increases throughout operation to greatly prolong usable service cycles.
01
Superior Impact Absorption
Exceptional material ductility withstands sustained high-magnitude impact without structural fracture, suited for all crushing workflows processing hard raw rock materials.
02
Extensive Cross-Model Compatibility
Covers jaw, impact, cone and all other mainstream crusher models with a complete size catalog, interchangeable with OEM wear parts from leading equipment brands.
03
Outstanding Long-Term Cost Efficiency
Compared against original equipment manufacturer spare parts, they deliver equivalent abrasion resistance while lowering clients' ongoing equipment operation and maintenance overheads.
04
Shortened Delivery Lead Times
Standard catalog models are stocked in inventory for immediate dispatch, while custom orders enter expedited production schedules to reduce customer wait times and guarantee unbroken line operation.
05
Process Technology
Precision Investment Casting
Resin-bonded sand or water-glass sand precision casting techniques are utilized to guarantee tight dimensional tolerances for all components, minimizing secondary machining allowances and streamlining assembly workflows.
Controlled Grain Refinement
Casting pouring temperatures and cooling rates are precisely regulated to refine crystalline grain structure, improving the alloy's comprehensive mechanical properties and abrasion performance.
Solution Annealing Heat Treatment
Following high-temperature solid solution processing, rapid water quenching is performed to form a uniform single-phase austenitic microstructure within castings, establishing the foundational metallurgical condition required for subsequent work hardening.
Full Through-Case Quenching
Critical high-load components undergo integral full quenching treatment to achieve uniform microstructure consistency throughout the entire casting cross-section, eliminating premature surface spalling or cracking induced by uneven hardness gradients.
Relevant Data
| Specification | Details |
| Material | Mn13, Mn13Cr2, Mn18Cr2, Mn22Cr2 high manganese / Hadfield austenitic manganese steel (11-14% or 17-24% Mn as per application requirement). Custom micro-alloying (Mo, V, Ti) available upon request. |
| Surface Hardness (As-Cast) | Approx. 180-220 HB (Brinell Hardness) |
| Surface Hardness (Work-Hardened in Service) | Up to 500-600 BHN; HRC 45-55 depending on impact intensity |
| Heat Treatment | Water toughening (solution annealing + water/salt quenching) at 1050-1100°C, ensuring fully austenitic microstructure. |
| Aperture Type | Round hole, square hole, slotted, or custom perforation pattern to suit screening specifications |
| Plate Thickness | Customized to crusher model and operational requirement |
| Casting Process | Sand casting with precision mold technology for dimensional accuracy |
| Applicable Standards | ASTM A128, GB/T 5680-1998, JIS G 5153-1999 |
| Application Equipment | Hammer crusher, impact crusher (HSI), pulverizer, vibrating screen deck, grizzly screen, grate bar assembly. |

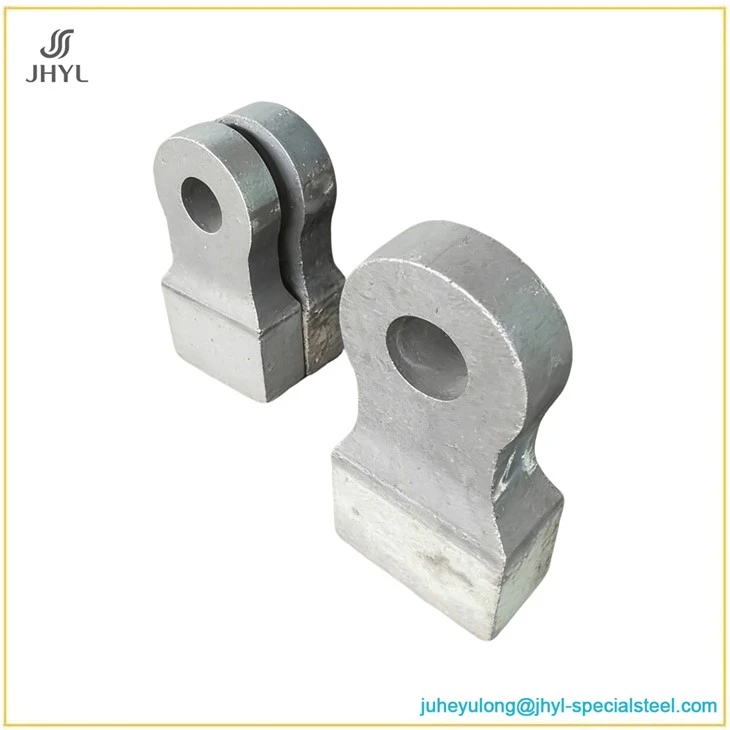

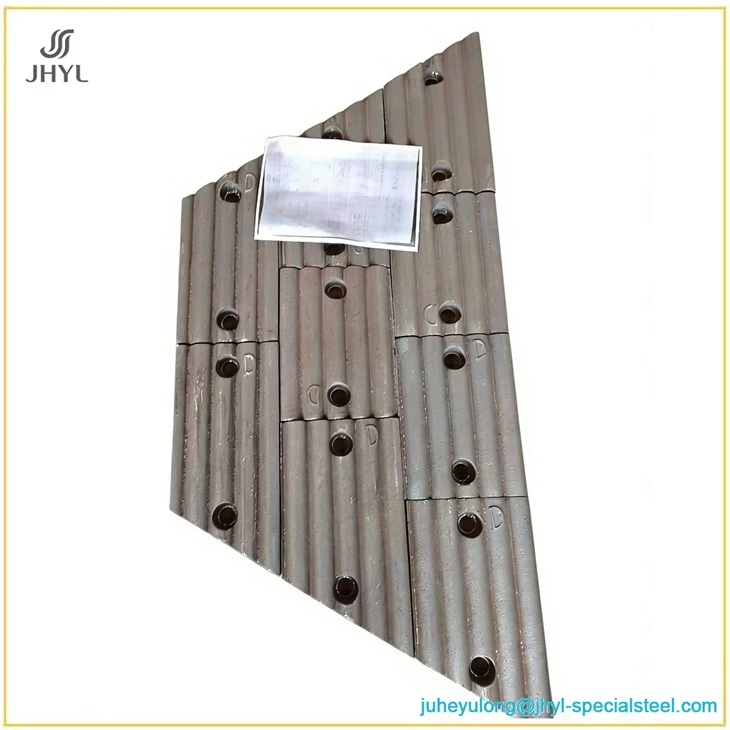

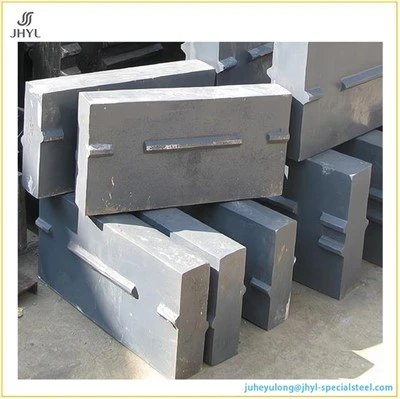

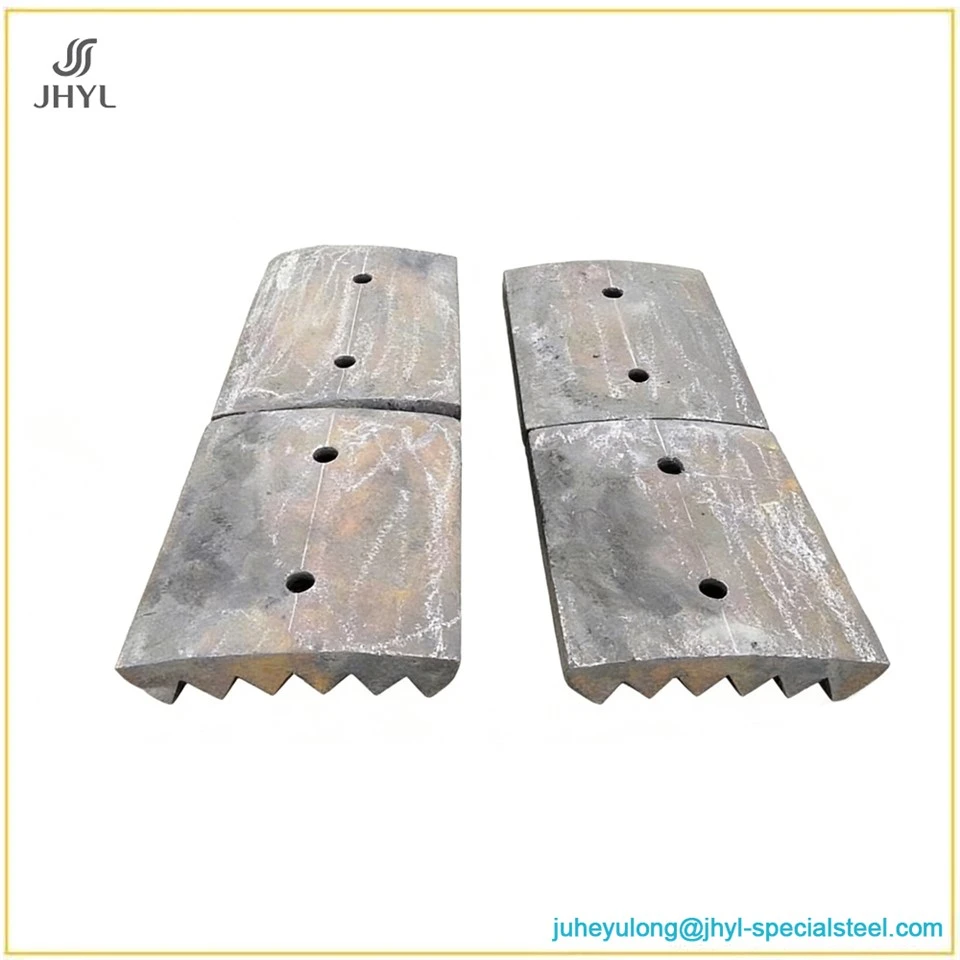

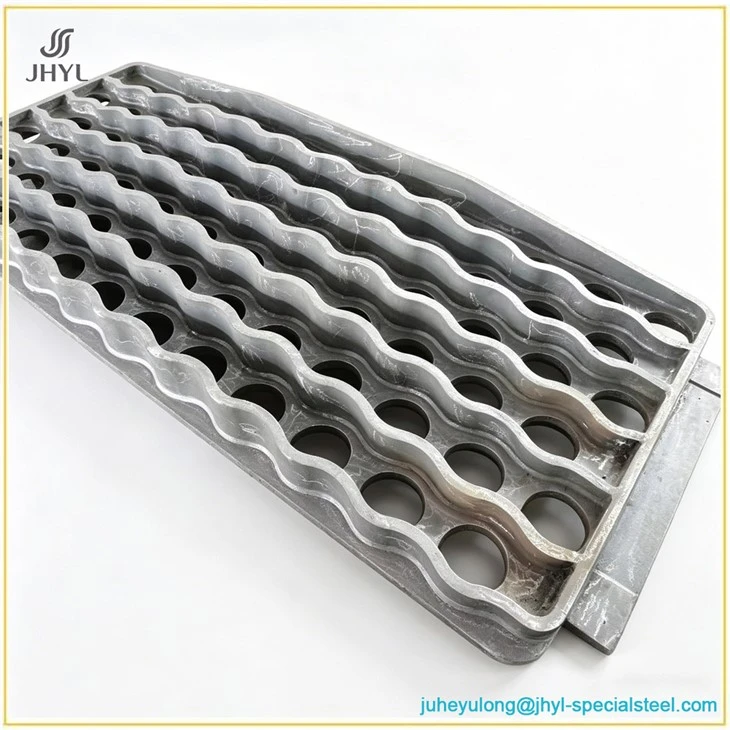

Product Image
FAQ
Q: Are Wear-Resistant High Manganese Steel Crusher Parts prone to large-scale chipping when crushing ultra-hard mineral ore?
A: Severe bulk spalling rarely occurs. The alloy possesses ample inherent ductility: outer surfaces harden automatically under continuous rock impact while the internal substrate remains pliable. Components maintain structural integrity under heavy rock collision loads and avoid large-area fragmentation during standard hard ore crushing operations.
Q: Can non-stop continuous crushing drastically reduce frequent shutdowns for part replacement compared to conventional steel materials?
A: Yes, the frequency of production halts for change-outs is significantly reduced. Wear progresses slowly and uniformly during daily round-the-clock production, extending usable service life and eliminating recurring disassembly and replacement tasks, enabling far longer uninterrupted crushing line operation.
Q: Does processing wet, mud-rich rock feedstock drastically accelerate abrasion on wear-resistant components?
A: The wear rate of Wear-Resistant High Manganese Steel Crusher Parts will only increase marginally rather than surge drastically. While wet mud amplifies surface friction contact, the alloy exhibits robust native friction resistance, still delivering noticeably longer service lifespans than standard steel even when handling damp feed materials.
