Product and Company Advantages Overview

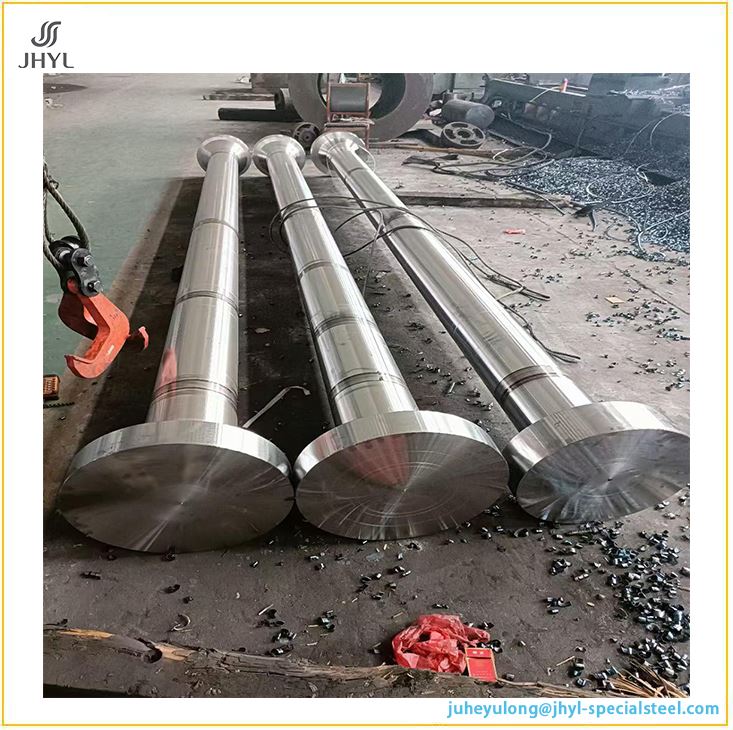

The Forged 42CrMo Power Transmission Shaft is a critical component serving heavy-duty mechanical equipment, playing a key role in high-strength kinetic energy transmission within machinery. This product is manufactured from 42CrMo alloy structural steel – a globally recognized ultra-high-strength steel renowned for its exceptional combination of strength, toughness, and hardenability – delivering reliable power transmission performance even in the most demanding industrial applications.
42CrMo is the preferred material for power transmission shafts, drive shafts, gear shafts, and main shafts, and is widely used in construction machinery, heavy-duty vehicles, energy equipment, mining machinery, and marine applications. Its international equivalents include AISI 4140/4142 (USA), DIN 42CrMo4 (Germany), and SCM440 (Japan), making it a globally accepted and trusted material standard.
Our company has over fifteen years of specialized experience in the forging and machining of 42CrMo alloy steel shafts, providing cost-effective, high-quality solutions to hundreds of customers worldwide.
Material Properties - Why 42CrMo?
The outstanding performance of our forged transmission shafts begins with the material itself. 42CrMo alloy structural steel offers a unique combination of properties that makes it ideal for power transmission components:
Chemical Composition (GB/T 3077 Standard)
| Element | Content (%) |
| Carbon (C) | 0.38 – 0.45 |
| Silicon (Si) | 0.17 – 0.37 |
| Manganese (Mn) | 0.50 – 0.80 |
| Chromium (Cr) | 0.90 – 1.20 |
| Molybdenum (Mo) | 0.15 – 0.25 |
| Sulfur (S) | ≤ 0.035 |
| Phosphorus (P) | ≤ 0.035 |
|
The addition of molybdenum (Mo) - approximately 0.15%–0.25% - is the key differentiator that sets 42CrMo apart from 40Cr and other alloy steels. Molybdenum is a strong carbide-forming element that significantly enhances hardenability and effectively suppresses temper brittleness. While 40Cr achieves an oil-quenched critical diameter of 25–40mm, 42CrMo extends this to 40–80mm or greater, ensuring that even large-section shafts achieve uniform hardness and strength throughout the cross-section.
Mechanical Properties
| Property | Value |
| Tensile Strength (σb) | ≥ 1080 MPa |
| Yield Strength (σs) | ≥ 930 MPa |
| Elongation (δ5) | ≥ 12% |
| Reduction of Area (ψ) | ≥ 45% |
| Impact Toughness (Akv) | ≥ 63 J |
| Hardness | ≤ 217 HB |
- Test specimen: 25mm diameter bar; Quenching: 850°C oil cooling; Tempering: 560°C water/oil cooling
Key Performance Advantages
Superior Strength & Hardenability
With a tensile strength exceeding 1080 MPa and yield strength above 930 MPa, 42CrMo delivers the high load-bearing capacity required for heavy-duty power transmission shafts subjected to high torque and bending loads. The exceptional hardenability ensures consistent mechanical properties across large cross-sections, eliminating the performance degradation that limits lower-grade materials like 45# steel in larger shaft diameters.
Excellent Toughness & Fatigue Resistance
After quenching and tempering (Q&T) , 42CrMo exhibits high fatigue limits and outstanding resistance to multiple impact loads. The material shows no significant temper brittleness and maintains excellent low-temperature impact toughness. This combination of strength and toughness is critical for transmission shafts that experience cyclic loading, shock loads, and stress reversals in real-world operation.
High-Temperature Performance
42CrMo maintains high creep strength and endurance strength at elevated temperatures, making it suitable for power transmission applications where frictional heating and ambient high temperatures are concerns.
Comparison with 40Cr
The comprehensive mechanical properties of 42CrMo significantly outperform those of 40Cr. While 40Cr is a cost-effective choice for medium-section components under conventional loads, 42CrMo is the "high-end configuration" for large-section, extreme-condition critical components where failure is not an option.
Comprehensive Customization Services
At Juhe Yulong Special Steel Co., Ltd. , we understand that every power transmission application has unique requirements. Our full-spectrum customization capabilities ensure that each 42CrMo forged shaft is precisely engineered to meet your specific needs.
Dimensional Customization
We produce forged transmission shafts in a wide range of sizes to accommodate diverse equipment requirements. Our production capabilities include:
- Diameter range: Φ80mm – Φ1200mm (and larger upon request)
- Length range: Up to 16 meters (custom lengths available)
- Shape options: Straight shafts, stepped shafts, gear shafts, main shafts, core shafts, and custom geometries
Whether you need a compact shaft for a gearbox or a massive main shaft for heavy machinery, we have the capacity and expertise to deliver.
Material & Heat Treatment Customization
Beyond standard 42CrMo, we work with a comprehensive range of alloy steels including 35CrMo, 40Cr, 18CrNiMo7-6, 34CrNiMo6, and other specialty grades. Our heat treatment capabilities include:
- Quenching and Tempering (Q&T) - The standard treatment for achieving optimal strength-toughness balance
- Normalizing - For improved machinability and uniform microstructure
- Surface Hardening - For enhanced wear resistance in high-friction applications
- Custom heat treatment cycles - Developed to meet specific hardness, strength, or toughness requirements
Precision Machining
Our vertically integrated manufacturing process includes precision machining capabilities to deliver shafts in various finish conditions:
- Black surface - As-forged condition
- Rough turned - For subsequent finishing by the customer
- Precision machined - Complete to final dimensions and surface finish
We perform turning, milling, planing, grinding, and drilling operations to achieve the required dimensional accuracy and surface quality.
Non-Standard & Custom Designs
We specialize in non-standard and custom-designed shafts. Simply provide your engineering drawings or specifications, and our team will develop a production solution tailored to your requirements. We support:
- Custom geometries - Complex stepped profiles, flanged ends, splines, and keyways
- Tight tolerances - Precision diameter control to meet your fit and function requirements
- Special testing - UT, MT, PT, and mechanical testing to your specified standards
Contact Us
Ready to discuss your custom 42CrMo forged power transmission shaft requirements? Contact Juhe Yulong Special Steel Co., Ltd.)today. With over a decade of specialized experience in forged alloy steel components, we are your trusted partner for high-performance power transmission solutions for mechanical equipment.
