Product Overview

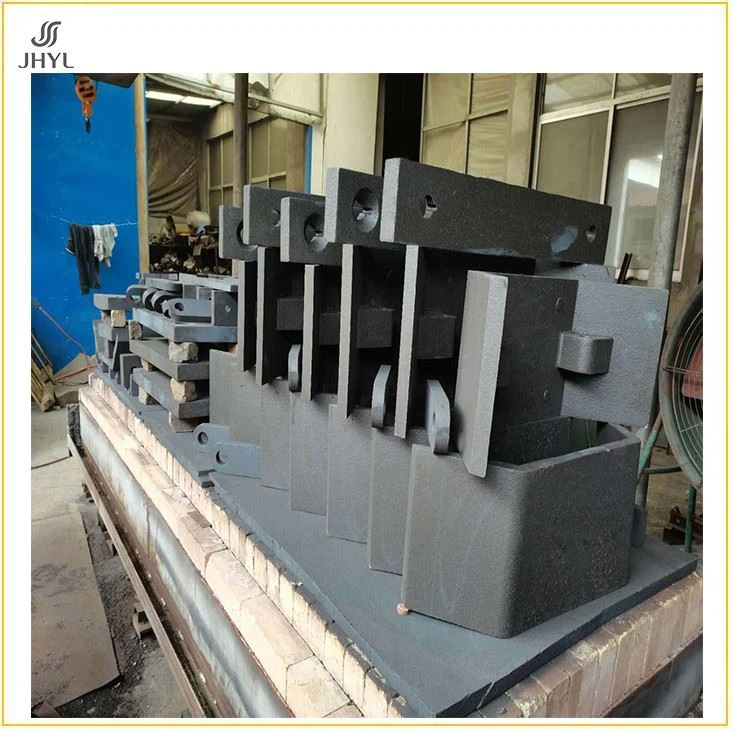

GX40CrNiSi25-20 heat treatment furnace rails are precision-engineered austenitic stainless steel castings designed specifically for extreme high-temperature environments in industrial heat treatment operations. Also designated as 1.4848 under EN 10295 and equivalent to ASTM A297 Grade HK, this heat-resistant alloy provides exceptional oxidation resistance and mechanical stability at operating temperatures up to 1100°C .
These high-temperature furnace rails serve as critical load-bearing components in continuous annealing furnaces, quenching furnaces, sheet-metal normalizing lines, and roller hearth furnaces, where consistent alignment and structural integrity directly impact product quality and production uptime.
Key Specifications
| Property | Value |
| Material Standard | EN 10295 / DIN 17465 |
| Material Number | 1.4848 |
| Equivalent Grades | ASTM A297 Grade HK, ZG40Cr25Ni20Si2 (GB), SCH22 (JIS) |
| Density | 7.8 g/cm³ |
| Tensile Strength (Rm) | 450-510 MPa |
| Yield Strength (Rp0.2) | 220-250 MPa |
| Elongation at Break | 8-9% |
| Max Service Temperature (Air) | 1100-1150°C |
| Melting Range | 1340-1390°C |
| Thermal Conductivity | 15 W/m·K |
Chemical Composition (wt%)
| Element | C | Si | Mn | Cr | Ni | Mo | P | S |
| Min | 0.3 | 1.0 | - | 24 | 19 | - | - | - |
| Max | 0.5 | 2.5 | 2.0 | 27 | 22 | 0.5 | 0.04 | 0.03 |
Why GX40CrNiSi25-20 for Furnace Rails?
Exceptional High-Temperature Strength
Unlike standard carbon steel rails that lose structural integrity above 500°C, GX40CrNiSi25-20 rails maintain their load-bearing capacity at temperatures where most materials begin to creep and deform. With a maximum mechanical service temperature of 1100°C, this material ensures your furnace rails remain straight and true through thousands of thermal cycles .
The high chromium content (24-27%) provides superior oxidation resistance, forming a protective chromium oxide layer that prevents scaling and material loss-a critical advantage when rails are exposed to direct radiant heat and combustion atmospheres .
Superior Creep Resistance
In continuous furnace operations where rails remain under constant load at elevated temperatures, creep deformation is the primary failure mode. GX40CrNiSi25-20 delivers reliable 1% creep limit values that ensure dimensional stability over extended service life, reducing the need for frequent rail replacements and realignment procedures.
Thermal Cycling Stability
The austenitic microstructure of this heat-resistant casting steel provides excellent resistance to thermal fatigue. With a coefficient of thermal expansion of approximately 16 µm/m·K, these rails accommodate the thermal expansion cycles inherent in batch and continuous furnace operations without warping or developing stress cracks .
Oxidation Resistance in Harsh Atmospheres
GX40CrNiSi25-20 is specifically formulated for service in oxidizing combustion atmospheres, where its silicon content (1.0-2.5%) works synergistically with chromium to enhance scale resistance . This makes it ideal for:
- Direct-fired furnace applications
- Protective atmosphere furnaces (N₂/H₂)
- Oxidizing environments with sulphur-bearing gases (case-by-case evaluation recommended)
Application Scenarios
Continuous Annealing Lines
Rails in continuous annealing furnaces operate at 750-950°C under protective atmosphere (N₂/H₂), supporting heavy workpieces through the annealing cycle. GX40CrNiSi25-20 provides the thermal stability needed for consistent alignment across furnace lengths exceeding 100 meters.
Roller Hearth Furnaces
In roller hearth configurations, these rails serve as support structures for the roller assemblies, maintaining precise spacing and alignment critical for thin-gauge material processing.
Quench & Temper Lines
Where rails are subjected to rapid temperature changes during quenching cycles, the material's thermal shock resistance prevents crack initiation and propagation.
Batch Furnace Trolley Systems
For car-bottom furnaces, heat treatment furnace rails embedded in the furnace floor must withstand repeated loading/unloading cycles at elevated temperatures-a demanding application where GX40CrNiSi25-20 excels.
Manufacturing Capabilities
| Process | Application | Lead Time |
| Investment Casting | Complex rail geometries, integrated features | 25-35 days |
| Sand Casting | Larger sections, economical volumes | 20-30 days |
| Centrifugal Casting | Long uniform sections, superior density | 30-40 days |
| Fabricated & Welded | Custom assemblies from cast components | 15-25 days |
why choose us
We specialize in the professional casting of GX40CrNiSi25-20 heat-resistant steel rails, backed by mature production processes and decades of experience in furnace components. Our application engineers provide selection optimization and on-site support to help customers mitigate risks. With specialized production, we achieve competitive costs and offer batch supply advantages for complete rail systems. Leveraging extensive export experience, we provide one-stop services including packaging, customs clearance, and global delivery, ensuring timely arrival.
faq
What is the maximum continuous operating temperature for GX40CrNiSi25-20 furnace rails?
In oxidizing atmospheres, continuous service up to 1100°C is acceptable, with intermittent exposure possible to 1150°C. For reducing or carburizing atmospheres, maximum temperature should be limited based on specific conditions
How does GX40CrNiSi25-20 compare to 310S stainless steel for rails?
While 310S offers excellent oxidation resistance, GX40CrNiSi25-20 (cast) provides better creep resistance at temperatures above 1000°C due to its optimized casting microstructure. For furnace rail applications where loads are sustained at high temperatures, the cast grade is generally preferred
Can these rails be welded for field modifications?
Yes. GX40CrNiSi25-20 exhibits good weldability using matching 25/20 filler metals. No pre-heat is typically required beyond warming to hand-warm temperature
What is the typical lead time for custom rails?
Patterned castings typically require 25-35 days for new orders. For existing patterns, 15-20 days is standard. Centrifugal cast sections may have shorter lead times for standard diameters.
Do you provide material test reports?
Yes. Every shipment includes EN 10204 Type 3.1 mill test certificates with full chemical and mechanical property verification.
Can you supply rails with pre-drilled mounting holes?
Absolutely. We perform finish machining including drilling, milling, and surface finishing per your installation drawings.
